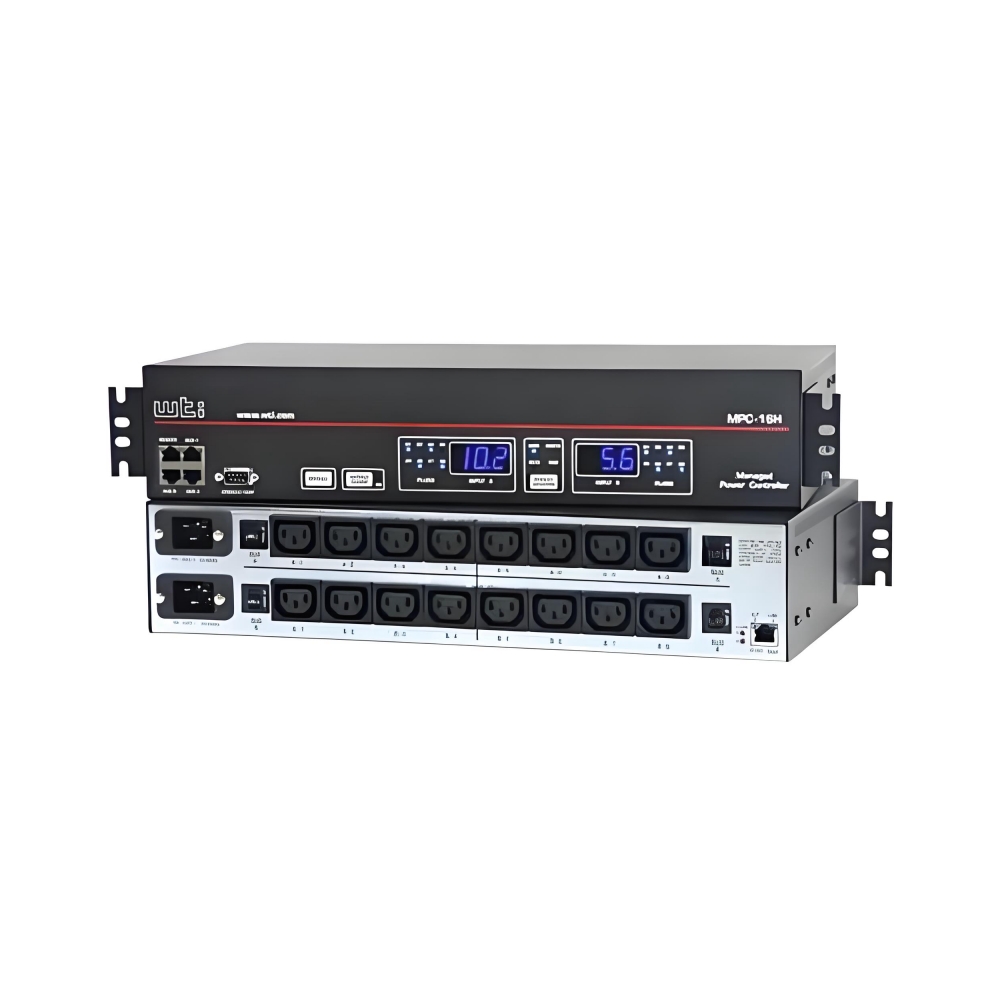

WTI电源控制台RSM-8R8-2 Console + Power Hybrid，NPS-8HD20-1

上海含灵机械设备有限公司销售供应WTI网络电源控制器PS-16HD20-2 Network Power Switch PDU Dual 20A 208V (16)IEC C13

WTI交换机

The NPS-16HD20-2 is a direct replacement for the IPS-1600E-D20

Accessories Included:

Quick Start Guide

DX9F-DTE-RJ - Adapter, DB-9F to RJ-45

Network Cable, Cat 5e, 7 ft.

Interface Descriptions:

Ethernet Port: 10/100Base-T, RJ45

Console Port:   (1) RJ45, RS232C

Power:

Voltage:   100 - 240 VAC, 50/60 Hz

Power Distribution:

(80% Derated) 2.8/8 kW

Power Outlets:         (16) IEC-60320-C13

Power Inlets:   (2) IEC-60320-C20

Input Feeds:     (2) 20 Amps

Current:   (2) 20 Amps (16 Amps Derated), 40 Amps Total

Circuit Breakers per Input:      (2) 20 Amps

Power Input Cables:         Detachable, Sold Separately

Physical/Environmental:

Size: 3.5"H x 19"W x 8.7"D (2U)

(8.9 cm H x 48.3 cm W x 22.1 cm D)

Weight:    20 Lbs. (9.1 Kg) Shipping Weight

Operating Temperature: 32° to 122° F (0° C to 50° C)

Humidity:          10% to 90% RH

Mounting:        19" Rack Brackets Included

Agency Approvals:

FCC, UL, CE

Power Cables (Order Separately)

WTI3

Part #       Supply Plug       Equipment End         Rating      Description

DPC-19-620P-8F       NEMA 6-20P    C19  20A/250V         NEMA 6-20P to IEC-60320-C19

8FT (2.4M)

DPC-19-L620P-8F     NEMA L6-20P  C19  20A/250V         NEMA L6-20P to IEC-60320-C19

8FT (2.4M)

DEC-19-20-6F

DEC-19-20-8F

DEC-19-20-10F         C20  C19  20A/250V         IEC-60320-C20 to IEC-60320-C19

6FT (1.8M)

8FT (2.4M)

10FT (3.05M)

Dual Input

Voltage: 100-240V AC

Current: (2) 20A (16A Derated)

Connectors: (2) IEC C20

Dual Output

Voltage: 100-240V AC

Current: (2) 20A (16A Derated)

Outlets: (16) IEC C13

WTI's NPS series network power switch PDUs are the perfect solution for critical network installations needing remote power control and reboot to 208V AC equipment. Just connect the power cable of your switches, routers, firewalls or any other network device directly to the power outlets of the NPS and you're ready for complete remote power on, off or reboot.

The NPS includes a robust selection of security and monitoring features, including event and temperature alarms, to help minimize angry support calls and accidental shutdowns.

Reboot Local & Remote Equipment!

NPS-3F15-1 (3) NEMA 5-15R 85/125V 1/1.5 kW* (1) 15 Amp Detachable*** N/A W : 8.2” (20.8 cm) D: 5.75” (14.6 cm) H: 1.75” (4.5 cm) (Freestanding) NPS-3F15-2 (3) IEC 60320 C13 85/250V 1/3 kW* (1) 15 Amp Detachable** N/A NPS-4HS15-1 (4) NEMA 5-15R 85/125V 1/1.5 kW* (1) 15 Amp Detachable*** N/A W : 19” (48.3 cm) D: 4.6” (11.7 cm) H: 1.75” (4.5 cm) (1 U) NPS-4HS15-2 (4) IEC 60320 C13 85/250V 1/3 kW* (1) 15 Amp Detachable** N/A NPS-8HS20-1 (8) NEMA 5-15R 85/125V 1.3/2 kW* (1) 20 Amp Detachable*** (2) 20 Amp W : 19”(48.3 cm) D: 8.7” (22 cm) H: 1.75” (4.5 cm) (1 U) NPS-8HS20-2 (8) IEC 60320 C13 85/250V 1.3/4 kW* (1) 20 Amp Detachable** (2) 20 Amp NPS-8HS16-3 (8) IEC 60320 C13 200/250V 3.2/4 kW (1) 16 Amp Detachable** (2) 16 Amp NPS-8HD20-1 (8) NEMA 5-15R 85/125V 2.6/4 kW* (2) 20 Amp Detachable*** (2) 20 Amp NPS-8HD20-2 (8) IEC 60320 C13 85/250V 2.6/8 kW* (2) 20 Amp Detachable** (2) 20 Amp NPS-8HD16-3 (8) IEC 60320 C13 200/250V 6.4/8 kW (2) 16 Amp Detachable** (2) 16 Amp NPS-8H20-ATS-1 (8) NEMA 5-15R 85/125V 1.3/2 kW* (2) 20 Amp**** Detachable*** N/A NPS-8H20-ATS-2 (8) IEC 60320 C13 200/250V 3.2/4 kW* (2) 20 Amp**** Detachable** N/A NPS-16HD20-1 (16) NEMA 5-15R 85/125V 2.8/4 kW* (2) 20 Amp Detachable*** (4) 20 Amp W: 19” (48.3 cm) D: 8.7” (22.1 cm) H: 3.5” (8.9 cm) (2 U) NPS-16HD20-2 (16) IEC 60320 C13 85/250V 2.8/8 kW* (2) 20 Amp Detachable** (4) 20 Amp NPS-16HD16-3 (16) IEC 60320 C13 200/250V 6.4/8 kW (2) 16 Amp Detachable** (4) 16 Amp * 80% Derated ** Sold Seperately *** Includes 15 Amp Power Cable **** Dual Input for Automatic Transfer Switching (ATS) Shipping Weights: NPS-3F15-X NPS-4HS20-X NPS-8HX20-X NPS-8H20-ATS-X NPS-16HD20-X
